The Wine Guardian TTW04B Defender Series is the premium choice for larger residential and commercial wine cellars requiring maximum performance and durability. Engineered for through-the-wall exterior installations, it delivers quiet, energy-efficient cooling with advanced temperature and humidity control, built-in Bluetooth® connectivity, weather-resistant construction, and an integrated heater for dependable year-round operation in even the most demanding environments.
$7,169.00
Wine Guardian Warranty:

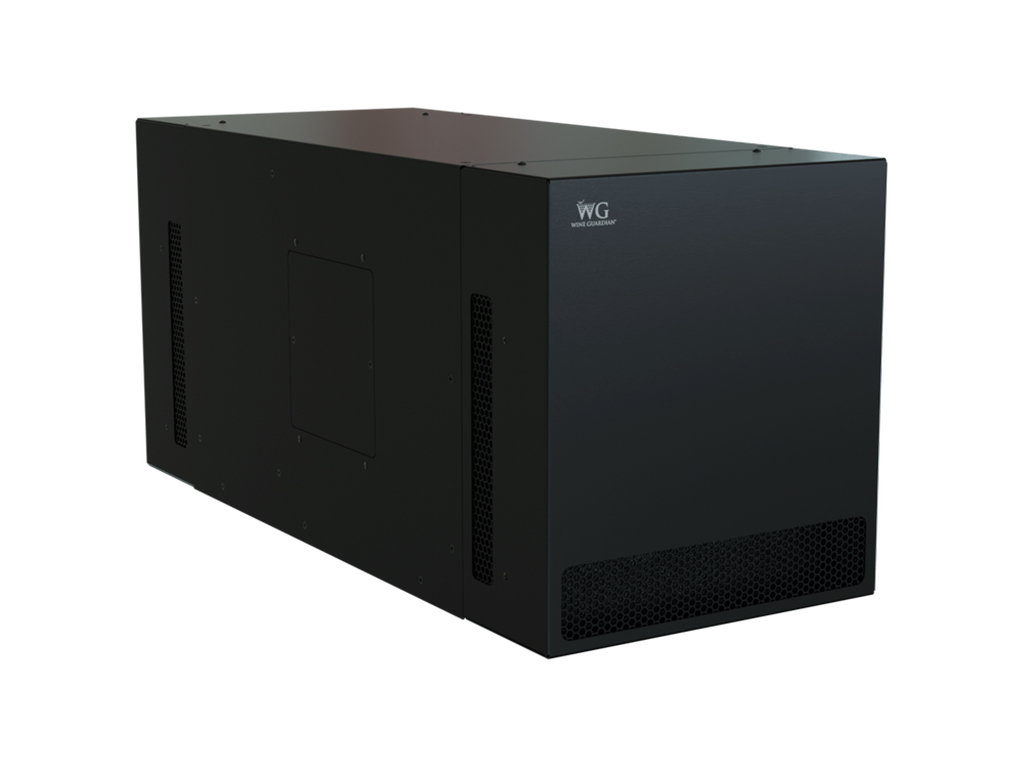

Wine Guardian Through-The-Wall TTW04B Defender
The Wine Guardian TTW04B Defender Series is engineered for the most demanding wine cellar applications, delivering reliable temperature and humidity control in a wide range of environmental conditions. Built with commercial-grade, corrosion-resistant components and a durable all-aluminum frame, the TTW04B Defender is designed for long-lasting performance in both residential and commercial wine cellars.
Installation is simple and flexible. The unit slides easily into the included wall sleeve or can be mounted directly to wall studs using the supplied brackets, eliminating the need for a licensed HVAC contractor.
Designed with performance and convenience in mind, the TTW04B Defender features sound-reducing insulation for exceptionally quiet operation, a weather-resistant exterior grille, and a coated condenser coil that performs reliably in outdoor temperatures from 0°F to 125°F (-18°C to 52°C). An integrated heating coil automatically warms the cellar whenever the ambient temperature drops below the desired set point, helping maintain ideal wine storage conditions throughout the year.
The TTW04B can be equipped with many options and accessories including remote sensors.
Wine Guardian’s patented through-the-wall (TTW) wine cellar cooling systems combine efficiency, performance, and quiet operation to consistently deliver peak wine storage conditions. Appropriate for small- to mid-sized wine cellars, these innovative units make it easier than ever to maintain and monitor temperature and humidity levels in your storage space thanks to their integrated Bluetooth®-compatible controller.
Our TTW wine cellar cooling systems feature the following:
Our United States and Canadian customers can shop our online store for through-the-wall systems, humidifiers, remote interface controllers, and parts. You can purchase all 60Hz equipment (for use in the USA, Canada, most of Central and South America, and parts of Asia) and 50Hz products (for use in Europe, most of Asia, Australia, and some other areas) through Wine Guardian’s extensive distribution network.
BTU/h Rating
3,760
The BTU/h value shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
Ductless/Ducted: Ductless Notable Features: Heater, Bluetooth / NFC Controls, Noise Reduction, Extended Temperature Control Range, Exterior-Rated Condenser
Standard Options
Serving Temperature
Allows the system to control to an extended temperature range from 42°F to 64°F (5°C to 18°C). This option is ideal for single to multiple cabinet applications and small wine rooms where consumption-temperature cooling is preferred. It also allows the user to rotate wine stock and change set point from season to season, making it ideal for restaurants, wine bars, clubs, etc.
