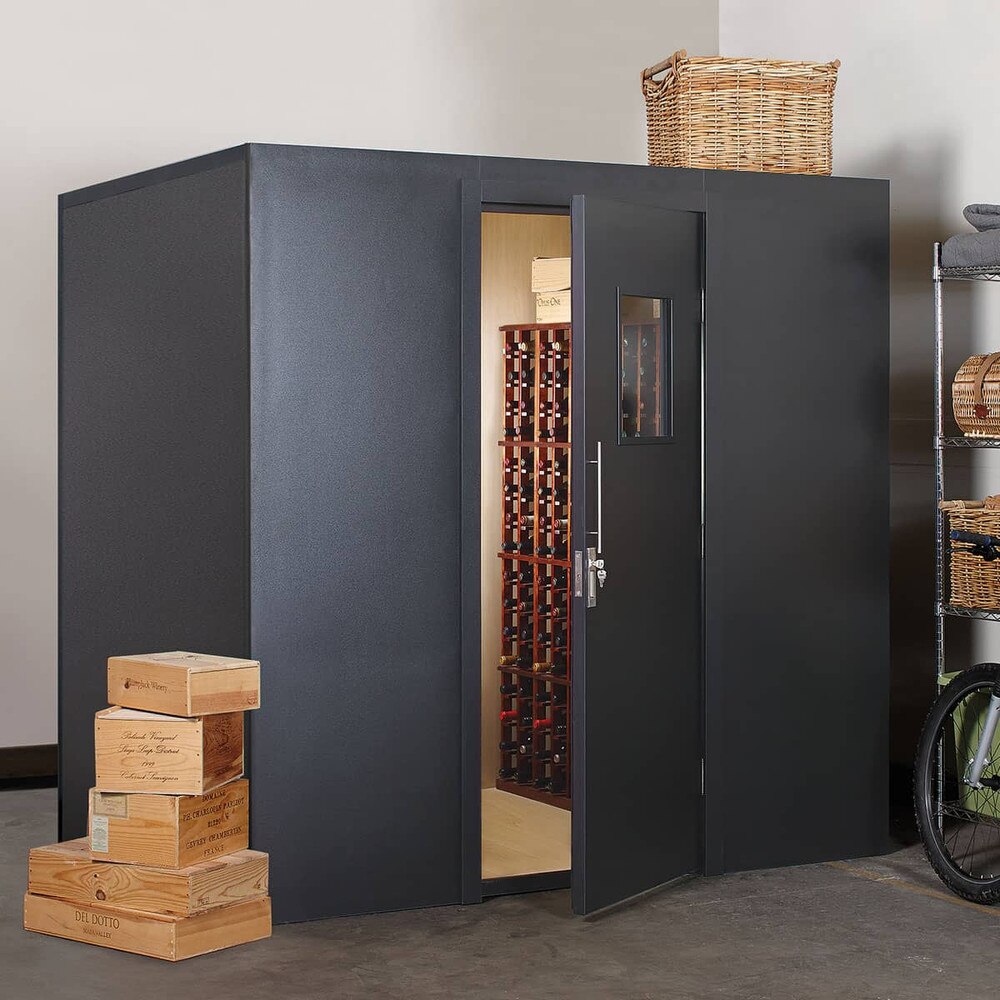

BILD 1200 walk-in wine rooms come with supercharged CellarPro 3200VEi cooling unit, all-wood Universal racking, locks, and lights. The BILD Series Cabinets are packed and shipped flat, and offer tremendous value and savings with many of the same features as the more expensive Le Cache wine cabinets.
This item is oversized and does not qualify for free Economy Ground shipping.
$9,995.00
Color (MUST SELECT):
The BILD 1200 Wine Room wine cabinets feature durable, durable melamine laminates on all exterior surfaces, thermal and UV protection, and advanced wine cellar refrigeration by CellarPro Cooling Systems. All panels are framed and insulated with high-density foam, and wood wine racks are efficiently sized to accommodate oversized bottles and will hold approximately 1,194+ bottles.
BILD 1200 racking is located on the left and right walls for easy access, with storage capacity for 480 bottles in 3-3/4 inch individual slots on each wall. In addition, 20 cubic feet of bulk storage space exists atop the racks, perfect for up to 240 Bordeaux-size bottles, or for oversized bottles like Magnums and large Champagne bottles.
BILD 1200 walk-in wine rooms come with a supercharged CellarPro 3200VEi cooling unit that can handle ambient temperatures up to 110F, all-wood Universal racking, double-pane tinted glass windows, locks, and lights. Our BILD Series are packed and shipped flat, and offer tremendous value and savings with many of the same features as our more expensive Le Cache wine cabinets.
Total Capacity: 1200 bottles
Size: 83w x 74d x 83h (in)
Flat Rate Shipping. Remote locations or unique delivery requirements may result in additional shipping rates.
Build-it-yourself wine storage solutions made by Le Cache, BILD cabinets offer many of the same features as our other models—but for a fraction of the price.
CellarPro cooling units, included with BILD cabinets for no additional charge, maintain ideal, consistent temperature and humidity conditions for aging wine. Double-paned glass windows and high-density foam insulation shield your collection from heat and UV rays.
Exterior surfaces are finished with durable melamine, and fixed interior wood racks provide stable storage for bottles.
|
|
*Made in USA. able to handle temps up to 110F
| Capacity: | 1200 bottles |
|---|---|
| Size: | 83" W x 74" D x 83" H |
| Weight: | 1600 lbs |
| Power/Rating: | 115V AC / 60 Hz |
| RUNNING / STARTUP AMPS (COMPRESSOR): | CellarPro 3200VEi: 7.2 Amps / 30.0 Amps |
POWER REQUIREMENT:
The cooling unit plugs into a standard wall outlet, and the outlet should be on a dedicated circuit. The components of the cooling unit draw 7.7 amps. The cord extends 10 feet from the back of the cabinet. If an extension cord is used, it should be 14-gauge wire or thicker, grounded, and as short as possible. We recommend using a surge protector rated at 15 amps or more. Under no circumstances should the wine cabinet share a circuit with another motor or compressor-based appliance, like a wine cooler, fridge or air conditioner.
FLOOR SURFACE:
The floor where you'll be placing the cabinet must be completely flat. Because of the significant weight of your wine cabinet, it is important that you consider the weight load factor of the floor as compared to the weight of the cabinet.
WEIGHT LOAD FACTOR:
After loading your wine cabinet with wine bottles, it will be extremely heavy. When selecting a location for your cabinet, make sure that the floor underneath is strong enough to support the weight of the cabinet plus the weight of the bottles (approx. 3600 lbs. assuming 1200 bottles).
TEMPERATURE REQUIREMENTS:
CellarPro VE cooling units are designed to handle temperatures ranging from 50 to 110F.
VENTILATION REQUIREMENTS:
The cooling unit generates hot air that must be exhausted in such a way that it won't be recirculated by the cooling unit. If the hot air cannot be dissipated or channeled properly, and the cooling unit is forced to recycle its own hot air, the cooling unit will be unable to maintain cold temperatures inside the wine cabinet and/or will overheat and/or will run all the time.
The cooling unit is rear vented, meaning that the cooling unit's intake and exhaust will occur on the rear wall of the wine room, and requires 4-6 inches of clearance behind the cooling unit.
Ample clearance behind the cooling unit is necessary for proper air circulation, and the location must be sufficiently large for the hot air generated by the cooling unit to dissipate.
ASSEMBLY REQUIRED:
BILD wine rooms and cabinets require assembly. All assembly hardware is included with your purchase.
Warranty: 1 Year (Cabinet) / 5 Years (Cooling Unit)
Optional Extended Warranty Available
Owners Manual: Click Here
Spec Sheet: Click Here
